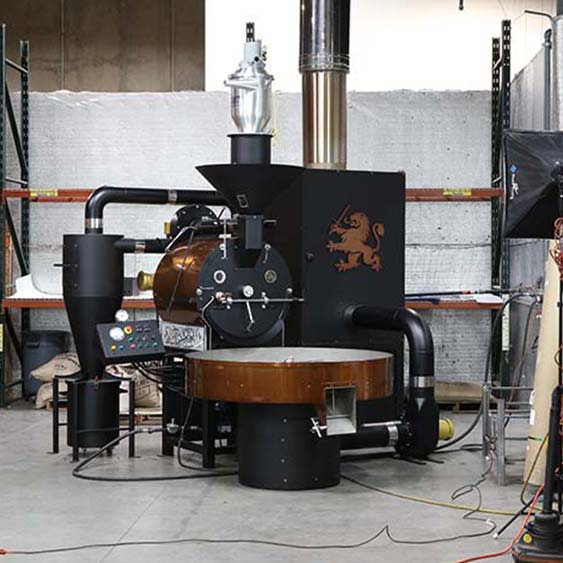

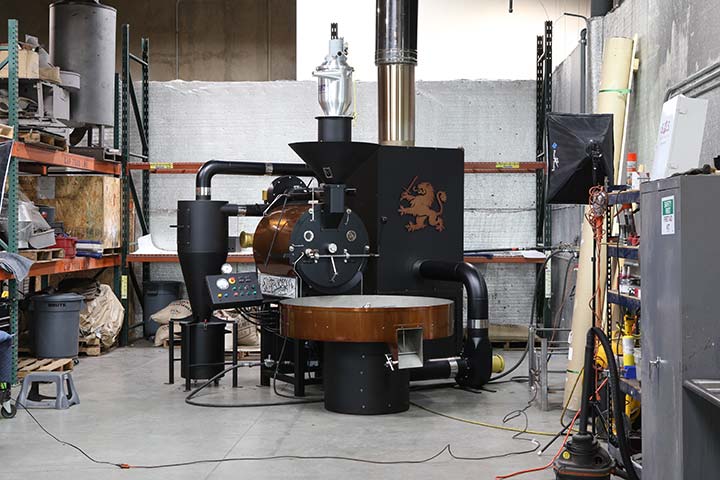

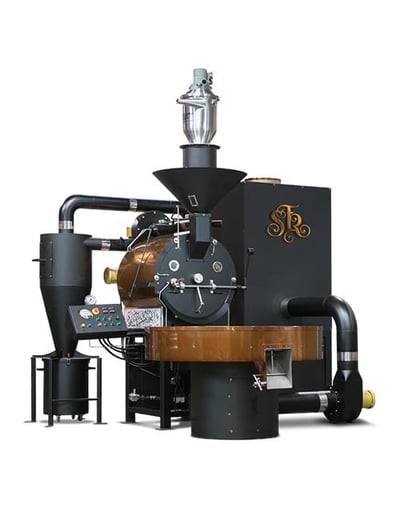

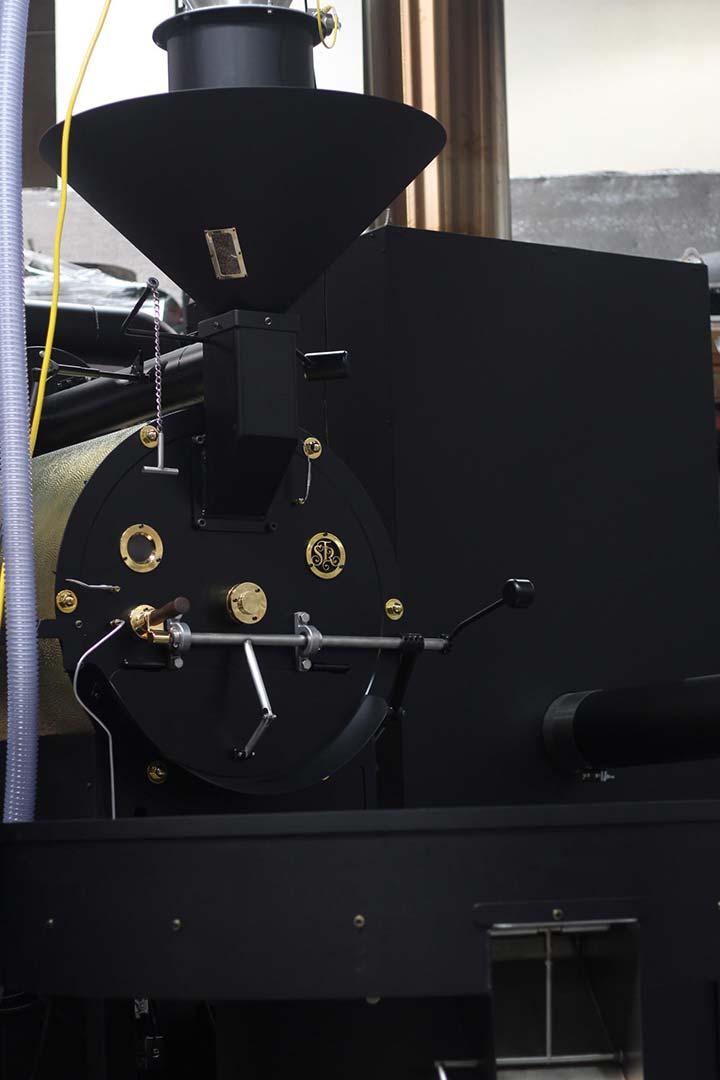

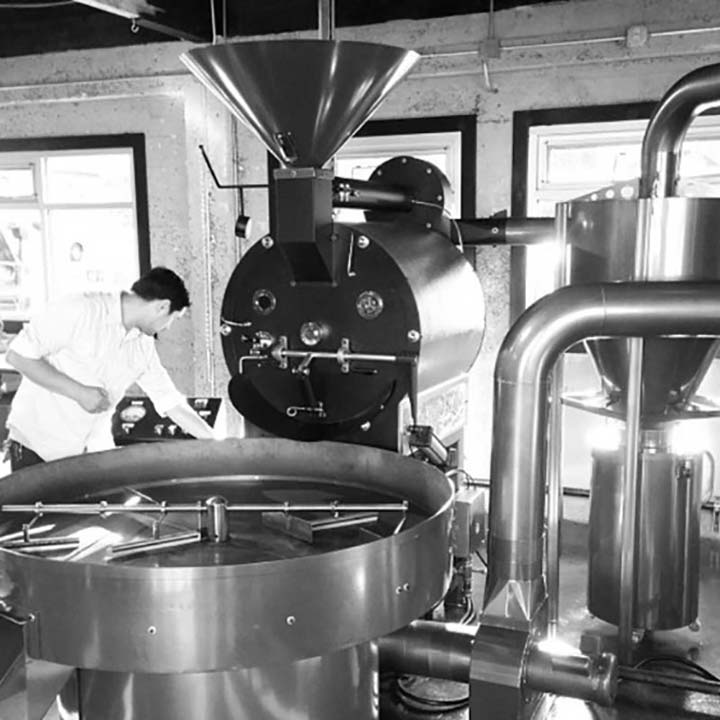

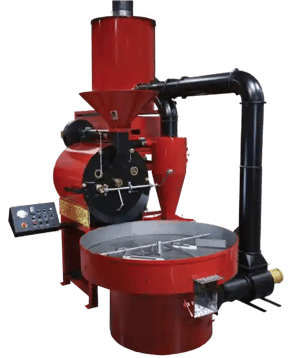

SF-75: 75lb/34kg large coffee roaster machine with afterburner
The SF-75 is the largest drum coffee roaster available from the San Franciscan Roaster Company. Despite its size and power, The SF-75 is one of the quietest roasters in the world.
This robust commercial coffee roaster is surprisingly easy to control. The most discerning roastmaster will find they can control heating at each stage of the roast.
As a manual drum roaster, the SF-75 boasts a comfortable low-profile operator interface along with the classic San Franciscan Roaster styling. Strong, beautiful, and quiet, the SF-75 can be perfectly featured in larger coffee houses.
A Robust, Beautiful, and Environmentally Friendly Drum Coffee Roaster
The SF-75 is built for the artisan roaster. It features independent, 3-phase motors with variable speed capability controls on the drum drive and hot air. It is perfect for those who desire precise control over conductive and convective heat transfer.
To reduce environmental impact, the SF-75 features an energy-saving afterburner with modulating controls which clean both hot and cool air.
As a continuous batch roaster, the SF-75 roasts and cools at the same time. For this reason, it can manage four roasts per hour - a total of 300 lbs/hr. Making it perfect for artisan roasters with several coffee houses or a strong wholesale program. The total roasting time for each 75lb batch is 13-15 minutes.
You can customize your very own SF-75 with optional features that can suit your individual requirements. The hot and cooling air vent, afterburner, and cyclone-chaff collector can be modified to suit low ceilings.
Manual, Flexible Precision for Roasting
The SF-75 is the most flexible large-capacity drum coffee roaster on the market. It provides the same degree of control on roasts as our other smaller drum coffee roasters.
Even though it’s a manual roaster, the SF-75 can be fitted with a roaster controller for programming roast profiles.

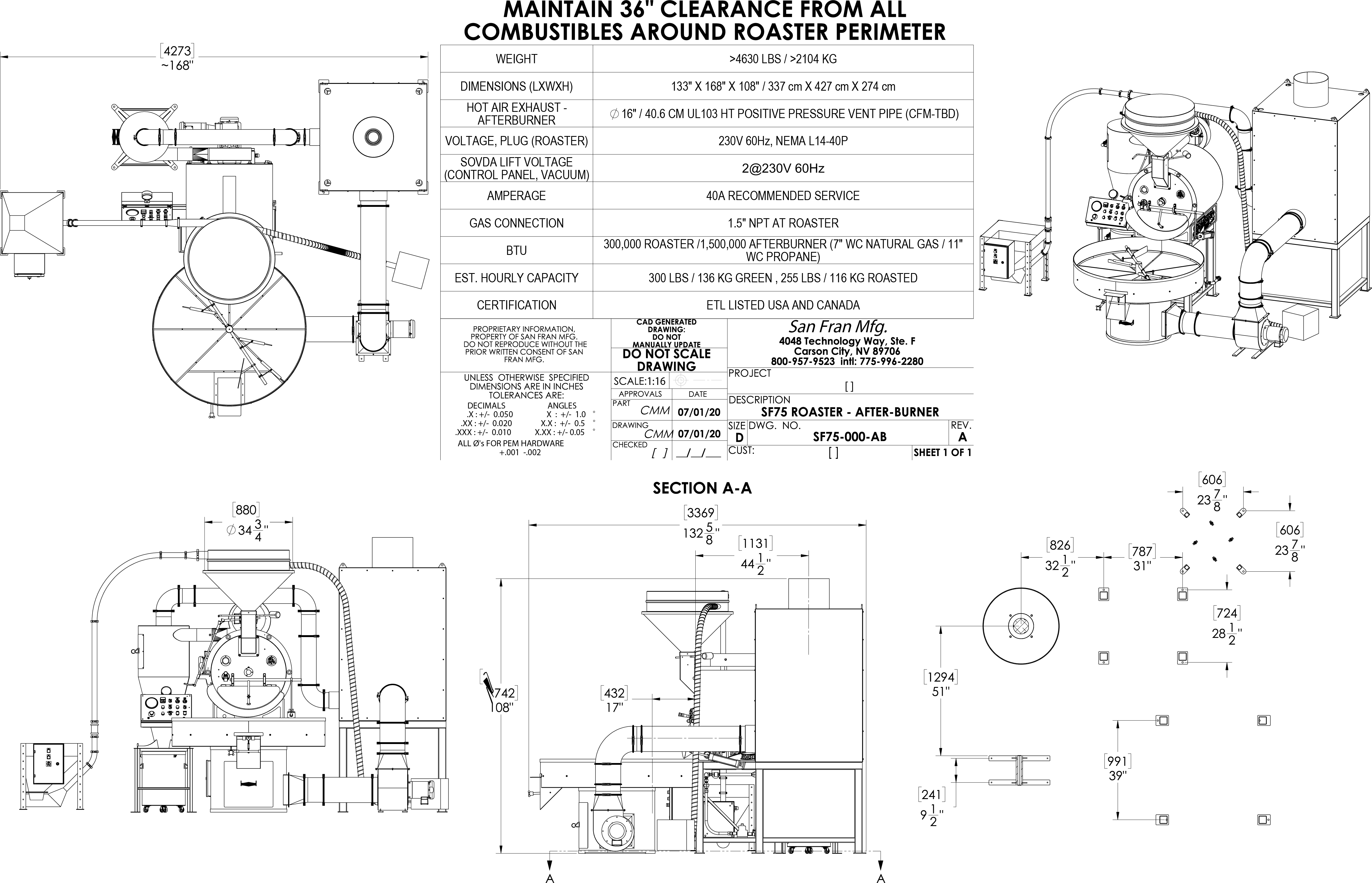

Specifications for the 75lb/35kg San Franciscan Roaster Model SF-75
- Maximum Hourly Capacity: 300 lb/136 kg
- Weight: 1850 lb / 839 kg
- Floor Space: 60″W x 96″L x 94″H (Can be altered at client’s request)
- Hot Air / Cooling Air Exhaust: 6”/8” diameter pipe/Afterburner 16” ID
- Voltage: 220 Volts 1/Ph or 220-440-480 Volts
- Amperage: 35 Amps
- BTU’s: 300,000 BTU/hr Roaster – 1MBTU Afterburner
- Gas Pressure: 7″ W/C Nat. Gas, 11″ W/C Propane
- Gas Line Requirements: 1 1/4″
- Water Quench: 1/2″ Pipe Thread

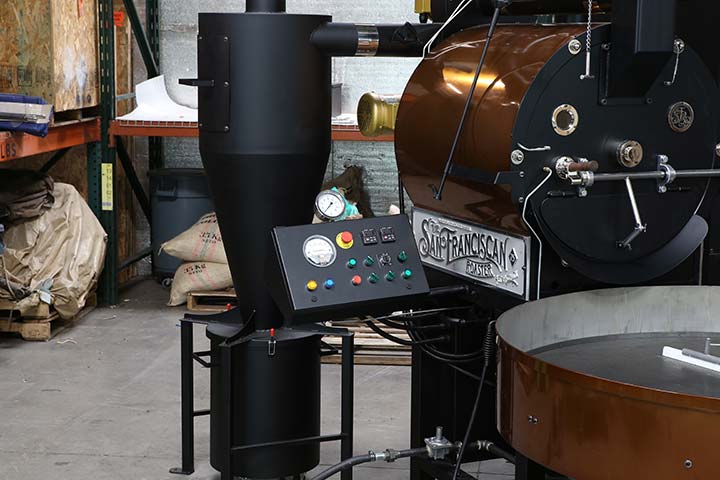

- Comfortable low-profile operator interface.
- Classic “The San Franciscan Roaster”™ styling.
- Instrumentation to include data logging capability with multiple inputs.
- Independent 3-phase motors with adjustable speed capability controls on drum drive as well as a variable hot air blower. Perfect for those who desire precise control over conductive/convective heat transfer.
- Powder coated “customer choice” color.
- The low NOx Afterburner with modulating controller is both energy-saving and better for the environment.
- Afterburner solution cleanses both hot and cooling air (requires 16″ ID exhaust system).
- Heating and cooling air venting, afterburner, and cyclone-chaff collector can be modified to fit with a low ceiling (12ft) (Optional).
- Client “art” custom cut logo in steel can be mounted on the afterburner as an option.

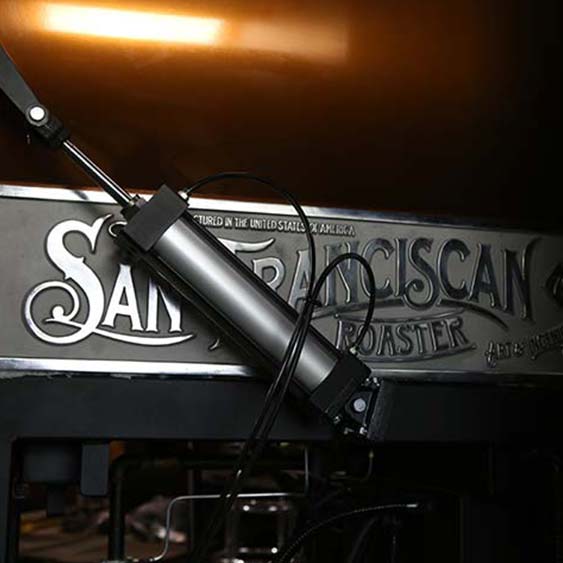

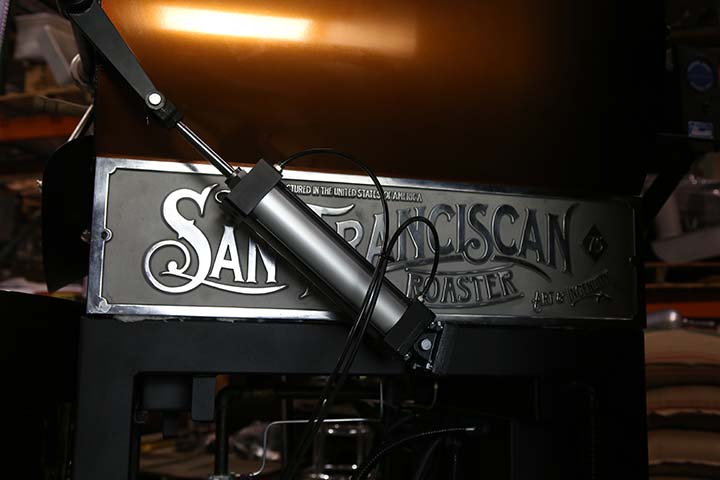

- Pneumatic systems with alarm.
- Water quench system with alarm.
- Roaster controller for programmed roast profiles available.
- Completely fabricated in our facility in Carson City, Nevada using only the best grade mild steel and components built in the USA.

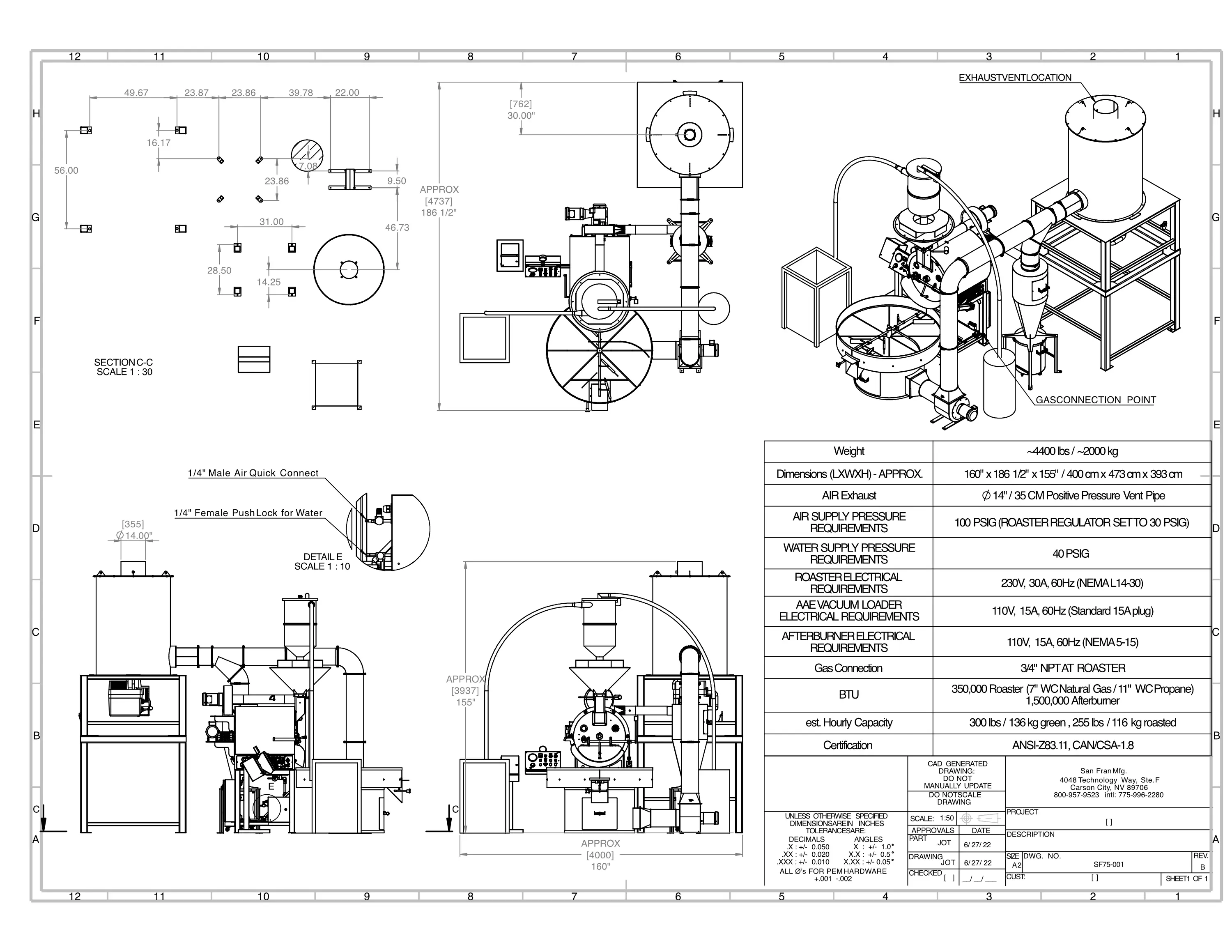

Specifications for the 75lb/35kg San Franciscan Roaster™ Model SF-75
-
- Maximum Hourly Capacity : 300 lbs.
- Weight : 1850 lbs. Roaster
- Floor Space : 160″W x 186″L x 155″H
- Hot Air Exhaust : 10″ diameter pipe/Afterburner 14″ID Afterburner
- Voltage : 220 Volts 1/Phz or 220-440-480 Volts 3/Phz
- Amperage : 35 Amps
- BTU’s : 300,000 BTU/hr Roaster – 1MBTU Afterburner
- Gas Pressure : 7″ W/C Nat. Gas, 11″ W/C Propane
- Gas Line Requirements : 1 1/4″
- Water Quench : 1/2″ Pipe Thread
- Comfortable low-profile operator interface.
- Classic “The San Franciscan Roaster”™ styling.
- Instrumentation to include data logging capability with multiple inputs.
- Independent 3-phase motors with variable speed capability controls on drum drive and hot air. Perfect for those who desire precise control over conductive/convective heat transfer.
- Powder coated “customer choice” color.
- Low NOx Afterburner with modulating controller is both energy-saving and better for the environment.
- Afterburner solution cleanses both hot and cooling air (requires 14″ ID exhaust system).
- Hot and cooling air venting, afterburner, and cyclone-chaff collector can be modified for low ceiling (12ft) (Optional).
- Client “art” custom cut logo in steel can be mounted on the afterburner.
- Pneumatic systems with alarm.
- Water quench system with alarm.
- Roaster controller for programmed roast profiles available.
- Completely fabricated in our facility in Carson City, Nevada using only the best grade mild steel and components built in the USA.
Features of the 75lb/35kg San Franciscan Roaster™ Model SF-75
- San Franciscan Roasters are hand-made in the USA.
- All components used are made in the USA and parts can be purchased in the USA and worldwide.

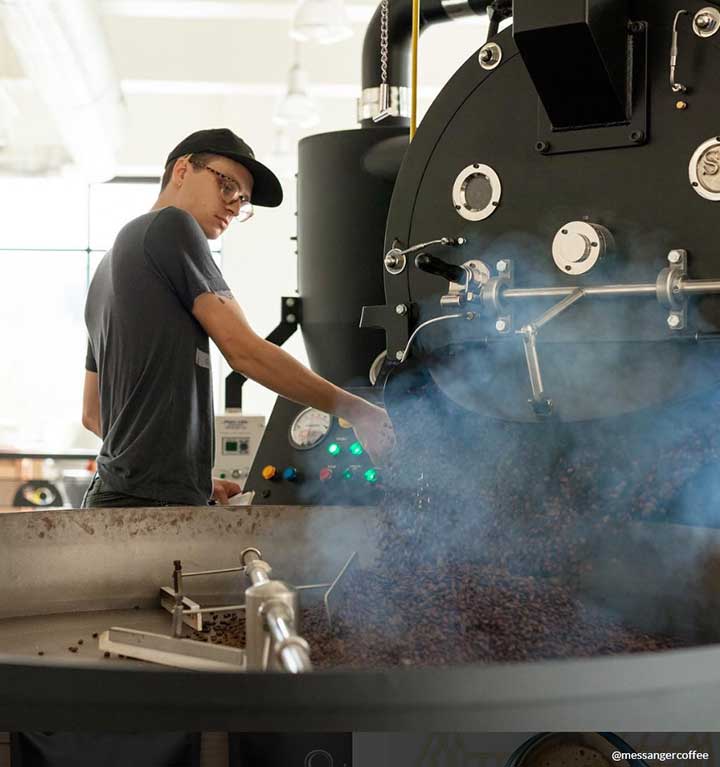

- The roaster is a continuous batch roaster – it roasts and cools at the same time; therefore you can do four roasts per hour (300 lbs).
- Roasting time is 13 to 15 minutes.
- Maintenance is easy and simple. The pipes are exterior and can be taken off to clean by removing the band clamps. Cooling tray detaches easily for cleaning.
- Minimal maintenance is required – Lubrication of bearings every 30 days.
- The cooling sweep pivots off of lifetime bearings so no lubricating is necessary.

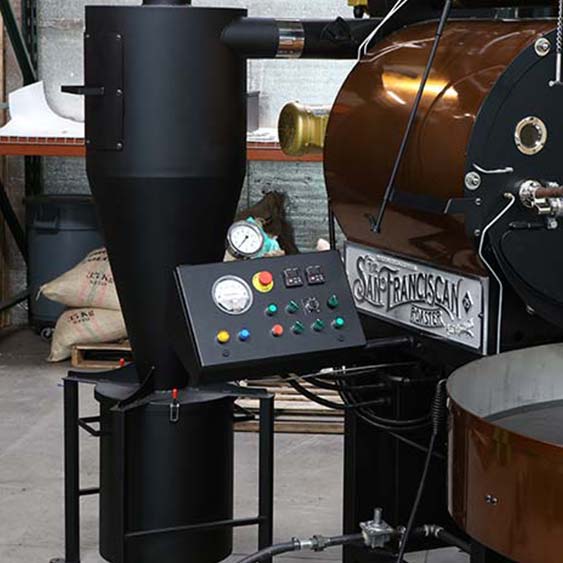

- The chaff cyclone is in the cylinder which sets beside the roaster, making it much easier to clean.
- Broken beans can be removed easily, due to the design of the ashtray on the front of the machine.
- The San Franciscan Roaster has four independent 3-phase motors with variable speed capability controls.

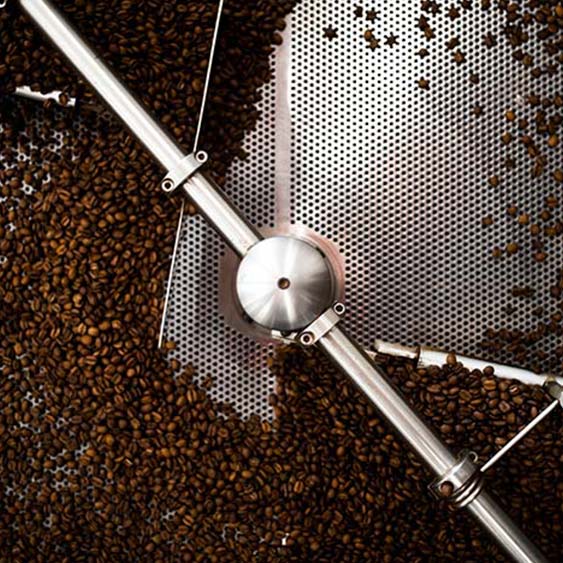

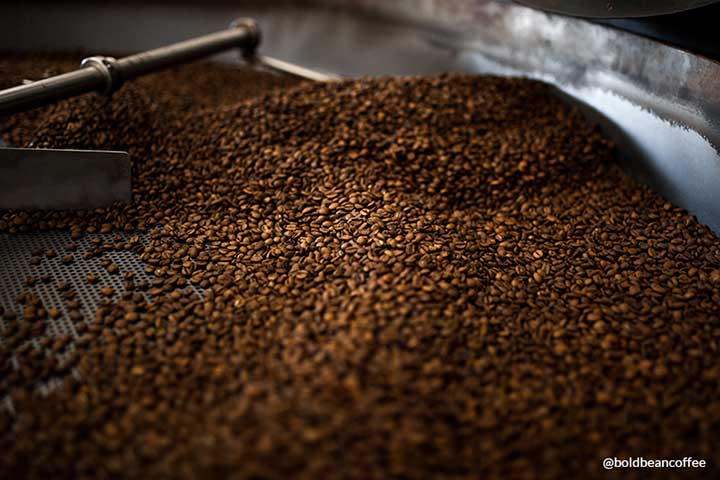

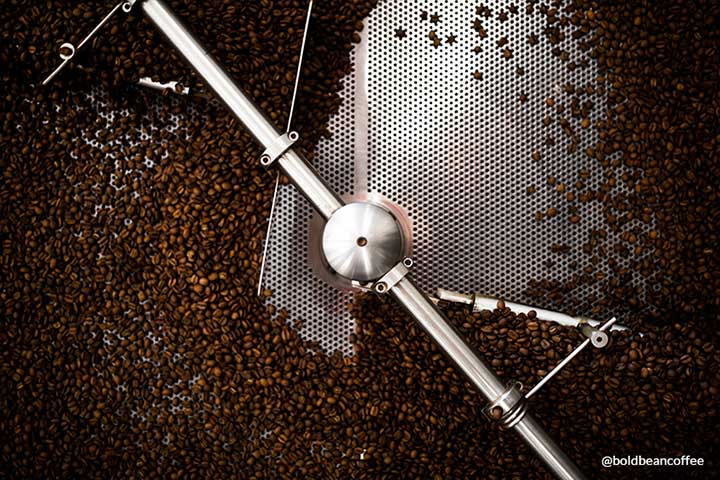

- Cooling tray sweep (which is pivoted off two lifetime bearings).
- Drum sweep.
- Hot air fan.
- Cooling fan.
- The San Franciscan is ETL approved as all electrical components meet the Electrical Testing Laboratory regulations.
- Hot air flow is controlled through the roaster chamber by a hot air damper.
- The roaster lights automatically and the burner is easily seen through a sight hole. All San Franciscans are powder coated with powder baked on at 400°F making the surface very durable.
- The San Franciscan Roaster is made of 100% schedule 40 steel and contains no cast iron. This enables it to withstand constant heating and cooling without any deterioration.

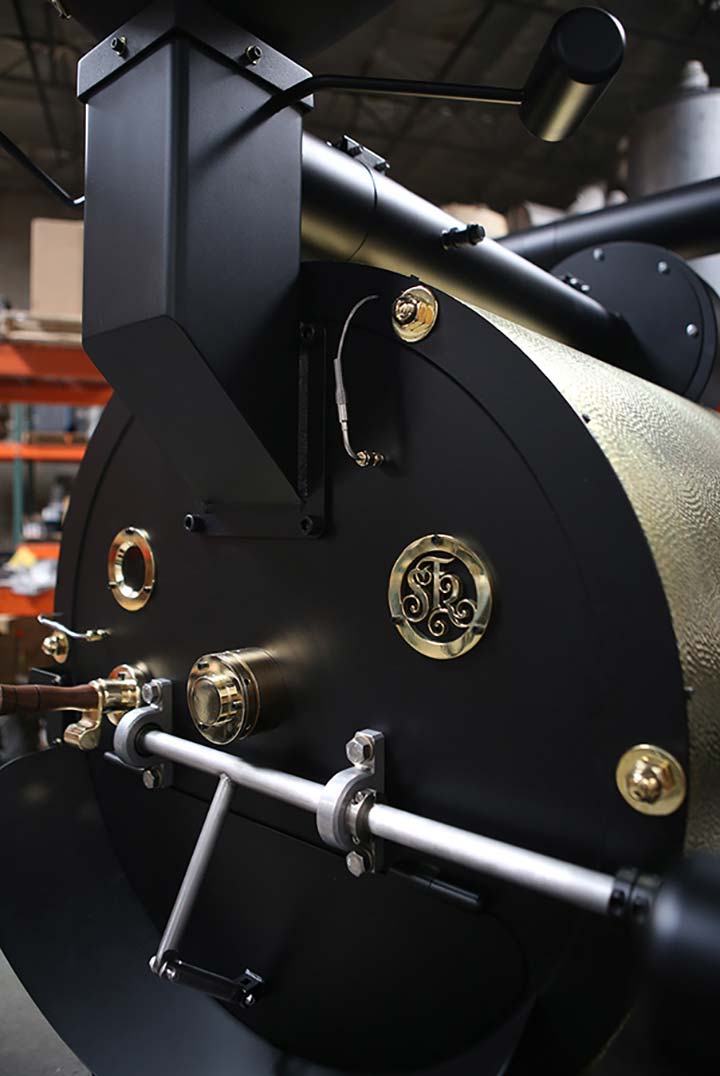

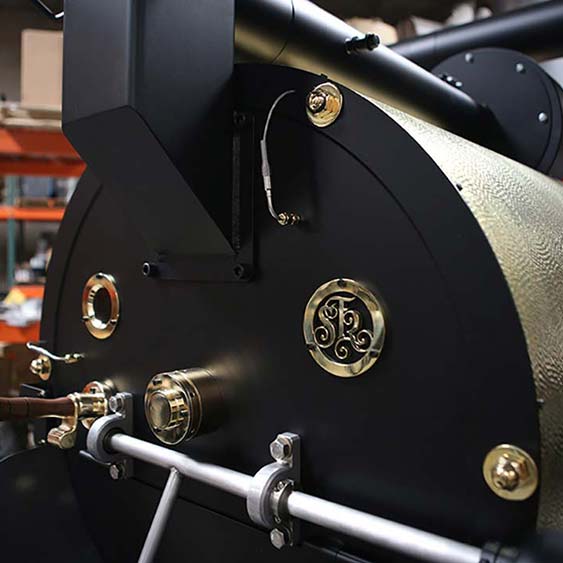

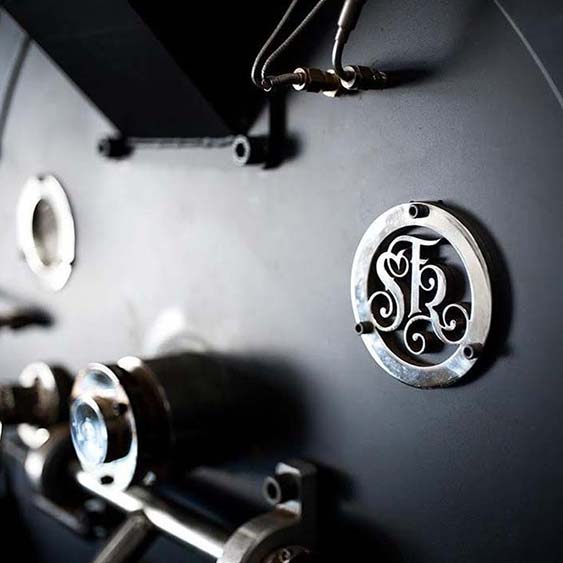

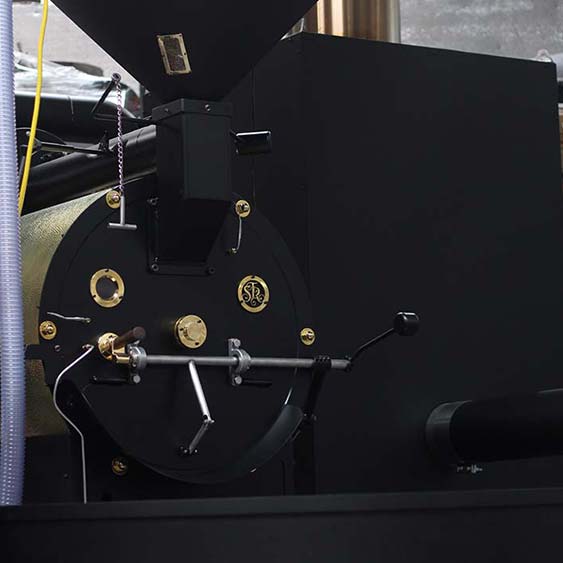

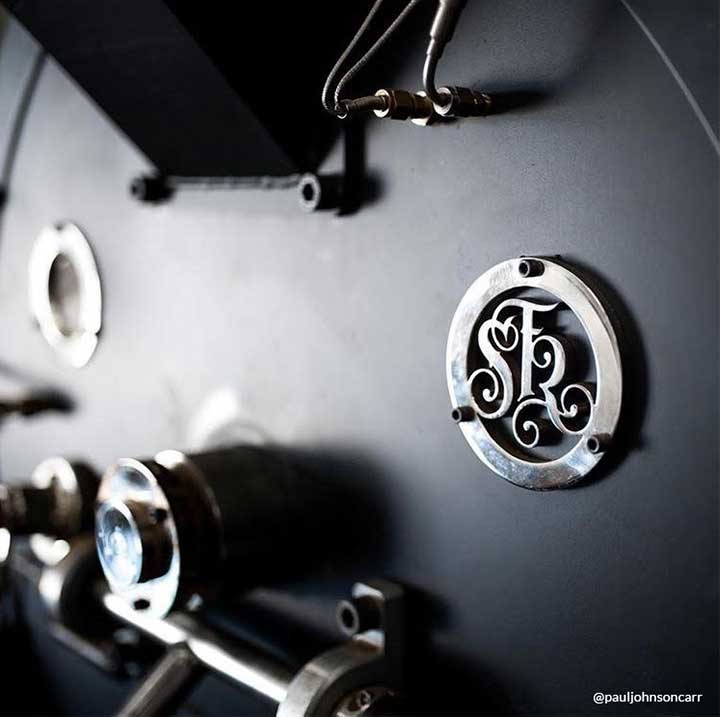

- The faceplates are 5/8ths inch steel.
- San Franciscan Roasters are compatible with most data-logging programs .Your choice of data logger can easily be built into your new roaster.
Guaranteed for Life
Each San Franciscan Roaster™ is covered by a Lifetime Warranty on the materials and fabrication work performed by the Company. All of our roasters also come with guaranteed personal support for the roaster’s entire lifetime. This lifetime warranty applies solely to the materials and fabrication work performed by the Company. The warranty covers failures due to defects in materials or workmanship and is limited to repair or replacement of the defective parts.
All third-party components, such as engines, bearings, and moveable parts built into the Roaster are guaranteed to be free from defects in materials and workmanship under normal use and service for a period of one (1) year from the date of purchase. Though they are built to last a lifetime and usually do.
While our machines rarely face problems, our team is always available to troubleshoot and answer questions. Simply call or email us and a member of our support team will provide the necessary assistance in a quick, succinct manner.
